0-4-0 Saddle Tank
Locomotive
BACK |
|
7 1/4" Gauge Bagnall 0-4-0 Saddle Tank Locomotive |
Sheet BNG02 - Main Frames and Horns
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
 |
BNG02/1 | Dummy Springs | Aluminimum | 4 off | 55.00 |
 |
BNG02/2 | Leading Axle Horns | Cast Iron | 2 off | 92.70 |
 |
BNG02/3 | Trailing Axle Horns | Cast Iron | 4 off | 86.00 |
| xxx | BNG02/4 | Axle Boxes | Cast Iron | 4 off | 72.10 |
 |
BNG02/5 | Axle Box Springs | Steel | 4 off | 16.48 |
 |
BNG02/6 | Heavy Duty Springs | Steel | 2 off | 10.30 |
| xxx | BNG02/7 | Laser Cut Frames and Buffer Beams | Steel | 1 set | 94.76 |
Sheet BNG03 - Brake Gear
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
 |
BNG03/1 | Wheels | Cast Iron | 4 off | 320.00 |
 |
BNG03/2 | Brake Shoe Ring | Cast Iron | 1 set | 60.00 |
 |
BNG03/3 | Hand Brake Shaft Bearing O/S | Gun Metal | 1 off | 26.00 |
 |
BNG03/4 | Hand Brake Shaft Bearing N/S | Gun Metal | 1 off | 30.00 |
Sheet BNG04 - Coupling/Connecting Rods Valve Gear
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
 |
BNG04/1 | Weighshaft Brackets | Cast Iron | 2 off | 19.57 |
 |
BNG04/2 | Weighshaft Caps | Cast Iron | 2 off | 17.51 |
Sheet BNG05 - Cylinder Assemblies
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
| xxx | BNG05/01 | Cylinders (fully Cored) | Cast Iron | 2 off | 360.00 |
| xxx | BNG05/02 | Valve Chests | Cast Iron | 2 off | 72.00 |
 |
BNG05/03 | Valve Spindle Gland Caps | Gun Metal | 2 off | 10.30 |
| xxx | BNG05/04 | Valve Spindle Guide Brackets | Gun Metal | 2 off | 46.00 |
 |
BNG05/05 | Crossheads | Cast Iron | 2 off | 48.00 |
| xxx | BNG05/05A | Crosshead Caps | Cast Iron | 2 off | 28.00 |
| xxx | BNG05/06 | Pistons | Cast Iron | 2 off | 12.00 |
| xxx | BNG05/06A | Piston Rings | Cast Iron | 2 off | 24.00 |
 |
BNG05/07 | Rear Cylinder Covers | Cast Iron | 2 off | 56.00 |
| xxx | BNG05/7A | Front Cylinder Covers | Cast Iron | 2 off | 10.00 |
 |
BNG05/08 | Piston Rod Gland Caps | Gun Metal | 2 off | 20.00 |
| xxx | BNG05/09 | Slide Valves | Gun Metal | 2 off | 44.00 |
 |
BNG05/10 | Slide Bar Support R.H. | Gun Metal | 1 off | 24.50 |
 |
BNG05/11 | Slide Bar Support L.H. | Gun Metal | 1 off | 24.50 |
 |
BNG05/12 | Bagnall Price Slide Bar Support R.H. | Gun Metal | 1 off | 35.00 |
 |
BNG05/13 | Bagnall Price Slide Bar Support L.H. | Gun Metal | 1 off | 35.00 |
| xxx | BNG05/14 | 1/8" BSP Drain Cocks | 1 set of 4 | 180.00 |
Sheet BNG06 - Smoke Box
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
 |
BNG06/1 | Smoke Box Saddle | Cast Iron | 1 off | 110.00 |
 |
BNG06/2 | Pump Eccentric Strap | Cast Iron | 1 off | 24.00 |
 |
BNG06/3 | Pump Body | Gun Metal | 1 off | 46.00 |
 |
BNG06/3A | Pump Gland | Gun Metal | 1 off | 9.27 |
 |
BNG06/4 | Smoke Box Door Ring | Cast Iron | 1 off | 50.00 |
 |
BNG06/5 | Smoke Box Door | Cast Iron | 1 off | 85.00 |
 |
BNG06/6 | Lower Exhaust Pipe | Cast Iron | 1 off | 90.00 |
| xxx | BNG06/6A | Lower Exhaust Pipe | Gun Metal | 1 off | 60.00 |
 |
BNG06/7 | Smoke Box Door Locking Bar | Cast Iron | 1 off | 25.30 |
 |
BNG06/8 | Chimney | Cast Iron | 1 off | 156.00 |
| xxx | BNG06/9 | Smokebox, Rolled and Welded | Steel | 1 Off | 45.00 |
Sheet BNG07 - Boiler
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
| xxx | BNG07/1 | Steel Boiler. Please ring for details | Steel | 1 off | POA |
Sheet BNG08 - Boiler Fittings
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
 |
BNG08/01 | Live Steam Header | Gun Metal | 1 off | 24.00 |
 |
BNG08/02 | Unions and Nuts 7/8" A/F cast | Gun Metal | 1 off | 32.00 |
 |
BNG08/04 | Elbows | Gun Metal | 2 off | 34.00 |
 |
BNG08/07 | Outer Flanges | Gun Metal | 2 off | 30.00 |
| xxx | BNG08/11 | Boiler Check Valves | Gun Metal | 2 off | 70.00 |
 |
BNG08/12 | Regulator Body | Gun Metal | 1 off | 54.00 |
 |
BNG08/13 | Gland (use BNG05/03) | Gun Metal | 1 off | 5.15 |
| xxx | BNG08/14 | Regulator Tube Seamless | Stainless | 1 Off | 22.00 |
Sheet BNG09 - Safety Valves
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
| xxx | BNG09/1 | Safety Valve Body | Gun Metal | 1 off | 48.60 |
 |
BNG09/2 | Pressure Gauge Syphon | Gun Metal | 1 off | 24.00 |
 |
BNG09/3 | Fire Hole Door | Cast Iron | 1 off | 25.00 |
 |
BNG09/4 | Backhead | Cast iron | 1 off | 70.00 |
 |
BNG09/5 | Firegrate | Cast Iron | 1 off | 55.00 |
 |
BNG09/6 | Steam Dome | Gun Metal | 1 off | 104.00 |
 |
BNG09/7 | Reversing Lever Stand | Cast Iron | 1 off | 32.50 |
Sheet BNG10 - Saddle Tank and Fittings
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
 |
BNG10/1 | Tank Filler Lid | Gun Metal | 1 off | 35.00 |
 |
BNG10/2 | Tank Filler Body | Gun Metal | 1 off | 45.00 |
| xxx | BNG10/3 | Water Taps | Gun metal | 2 off | 48.00 |
| xxx | BNG10/4 | Saddle Tank laser Cut and Rolled | Brass | 1 Set | 350.00 |
Sheet BNG11 - Cab and Miscellaneous Details
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
 |
BNG11/1 | Makers Plates | Brass | 2 off | 46.35 |
 |

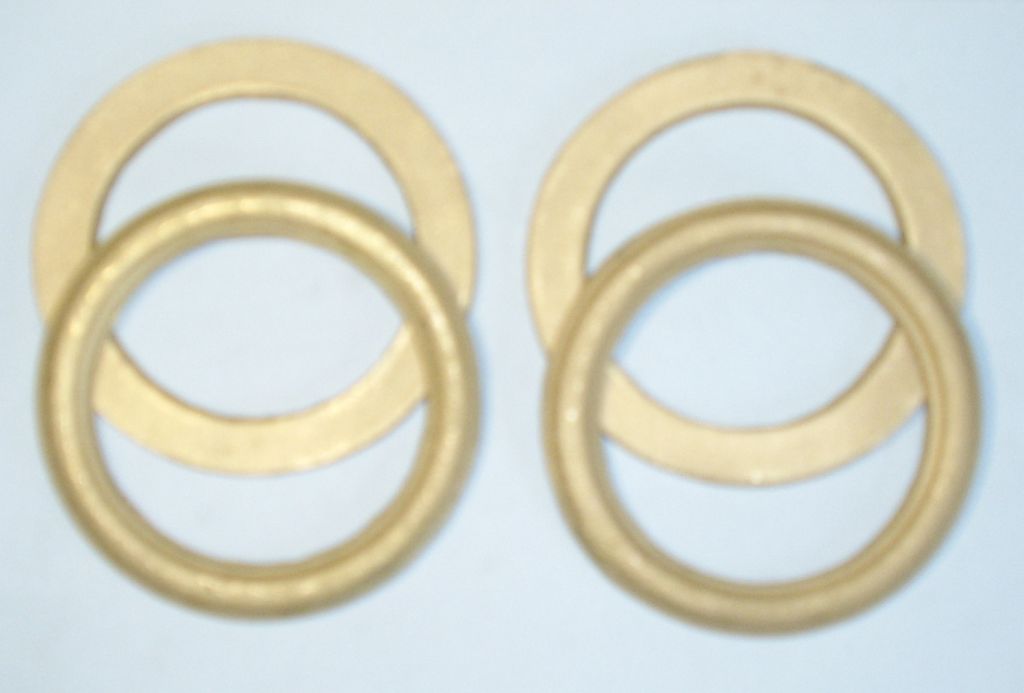

BNG11/2 | Spectacle Frames | Brass | 2 Sets | 63.56 |
 |
BNG11/3 | Brake Handle Support Bracket | Cast Iron | 1 off | 3.61 |
| xxx | BNG11/4 | Ash Guard | Aluminimum | 1 off | 17.00 |
| xxx | BNG11/5 | Floor | Steel | 1 Off | 43.26 |
| xxx | BNG11/6 | Floor (Bagnall Price) | Steel | 1 Off | 47.38 |
| xxx | BNG11/7 | Steel Cab, Laser Cut and Folded | Steel | 1 off | 128.75 |
| xxx | BNG11/8 | Steel Roof, Rolled and Bent | Steel | 1 off | 87.55 |
Sheet BNG12 - Bagnall Price Valve Gear
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
 |
BNG12/1 | Eccentric Straps | Cast Iron | 2 off | 34.00 |
 |
BNG12/2 | Weighshaft Brackets | Cast Iron | 2 off | 28.00 |
 |
BNG12/3 | Rocking Shaft Brackets | Cast Iron | 2 off | 38.00 |
| xxx | BNG12/4 | Rocking Shaft Bushes | Cast Iron | 2 off | 10.40 |
Bagnall Fittings - Construction manual
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
| xxx | 0607 | 1 5/8" Dia Pressure Gauge 0-150 psi |
Brass | 1 off | 32.00 |
 |
1690 | Bagnall Construction Manual This manual is spiral bound to open flat for easy reference and contains step by step instructions for building the Bagnall Saddle Tank Locomotive in 7 1/4" gauge. Sketches of any necessary jigs and fixtures are included together with a list of castings and a reduced General Arrangement drawing. The manual represents excellent value and is a useful accessory to a set of drawings |
17.00 | ||
