MJ Engineering - Sundries

Traction Engine and
Locomotive
Sundires

We have produced a number of realistic extras which will make your model more authentic.

NG Loco lamp | 2", 3" & 4" Front and Rear Lamps | Showmans Dynamo

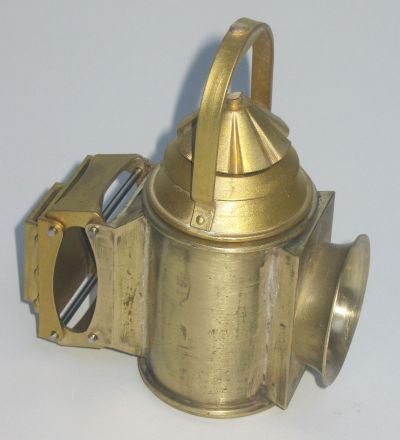

Loco lamp in 4" Scale

We have introduced a 4" scale cast brass narrow gauge locomotive front lamp based on our 4" scale traction engine lamp. This has a forward facing round lens with the fully sprung hinge at the back. It is suitable for 7 1/4" or 10 1/4" narrow gauge locos such as the Bagnall and Romulus.

Update - The castings have arrived and we are putting the kits together. They will be available at Alexandra Palace.


	New 4" scale loco lamp Forward facing round lens fully sprung mounting at the back uses a night light candle
1093	Kit for a single lamp	51.00

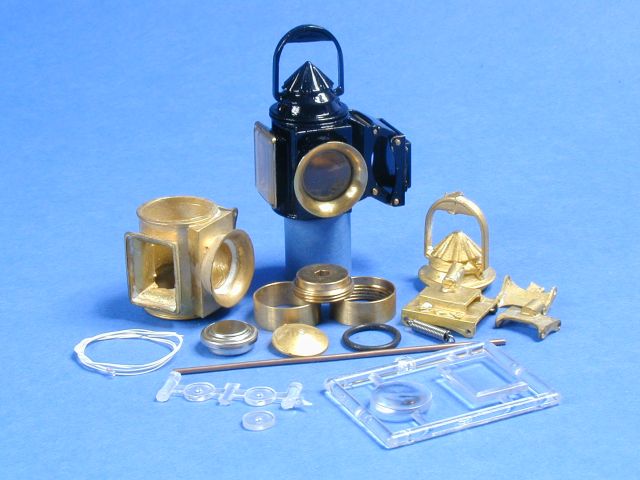

Traction Engine Lamps in 2", 3" and 4" Scales

Front Lamps Fully Working

These are beautifully crafted and we are very proud of them!

All the lamps are fully sprung and produced in brass by the "lost wax" casting method each item containing rivet detail. All holes are cast so there is no machining required, just removal of the casting sprues and any small "lumps and bumps" which are part of the casting process.

The 2" and 3" lamps have lenses which are moulded in clear acrylic and hardly need touching, and are designed for assembly with soft solder, epoxy adhesive or loctite.

The 4" are heavy castings and designed to be riveted or silver soldered and screwed together. They incorporate genuine optical lenses which magnify the flame of a "night light" candle and give a very realistic light.

All components are provided including rivets, screws and full assembly instructions.

Click the images to enlarge.


Part No	Description	Price Ł Ex Vat
0870	Kit for a pair of 2" scale front lamps	46.80
1080	Kit for a pair of 3" scale front lamps	80.85

	4" scale Engine Lamps feature a "night light" candle and magnifying lens
1091	Kit for a pair of 4" scale front lamps	185.00

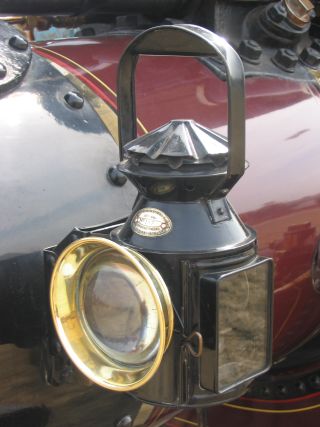

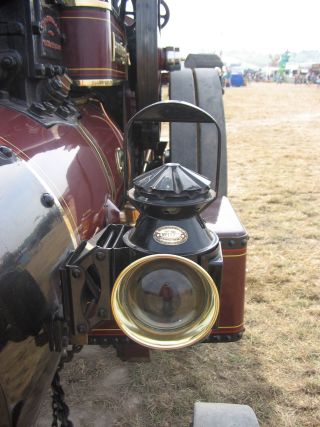

The full size lamps, spotted at Dorset Steam fair 2005

Rear Lamps

These are lost wax castings and need only a light clean up and painting. The 2" scale are non-working.
We are currently designing the 3" and 4" scale rear lamps which we hope will be fully working with a battery and bulb.


Part No	Description	Prive Ł Ex Vat
0875	Kit for a 2" scale rear lamp	12.12
1085	Kit for a 3" scale rear lamp These are currently being designed and should be available soon
1092	Kit for a 4" scale rear lamp These are currently being designed and should be available soon

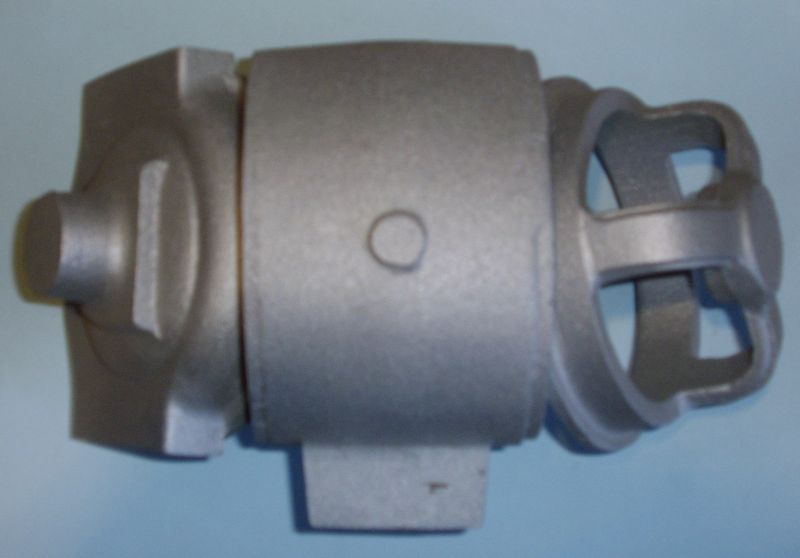

Dynamo and Exiter Castings in 2" scale

We have received many requests over the years for dynamo castings for Showman's Engines and we have made patterns for these in 2" scale and they are cast in Aluminimum. They represent the Mather and Platt P8C Dynamo and P3C Exciter as fitted to Burrell Scenic Showman's Engines. We also have the correct cover plates showing the cable connections and these are etched in brass.


Part No	Description	Price Ł Ex Vat
3220	Brush End Cover	31.14
3221	Main Body	53.18
3222	Pully End Cover	35.82
3223	Etched Cover Plates	21.00

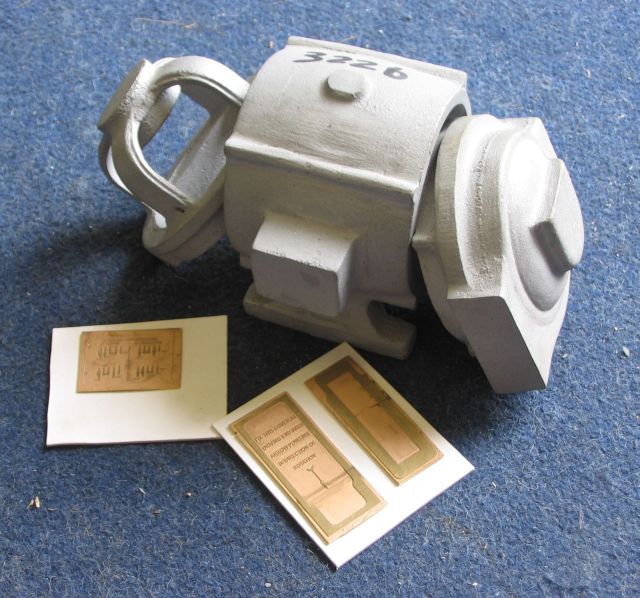

Exciter Dynamo


Part No	Description	Price Ł Ex Vat
3224	Brush End Cover	16.50
3225	Main Body	28.30
3226	Pully End Cover	29.50
3227	Etched Cover Plates	21.00
