Road Locomotive
and Showmans
|
Click either image for more pictures |

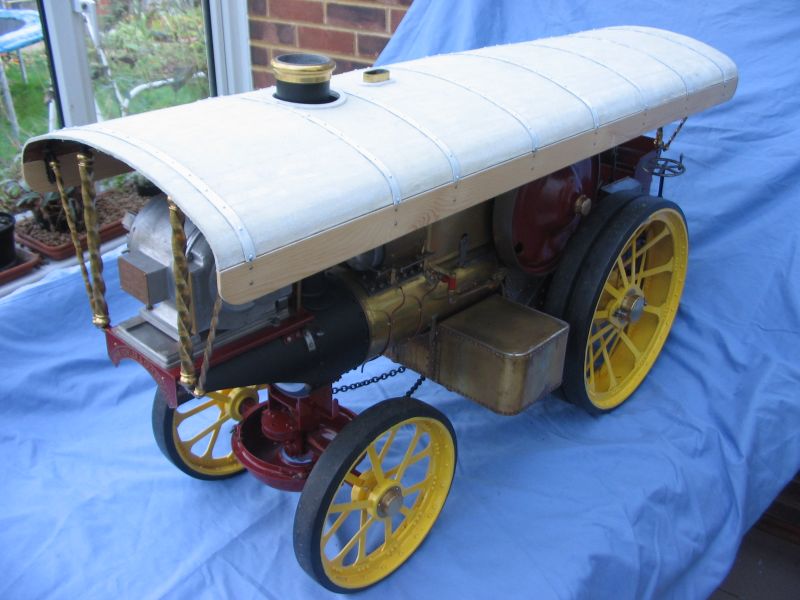

2" scale Fowler Class A7 Road Locomotive and Showmans |
A full set of highly detailed drawings has been produced for this engine, scaled down from "works drawings". This has resulted in a very accurate scale model with every detail faithfully reproduced. In common with our other engines a very comprehensive set of castings and fittings is available to help you build a first class replica of the original engine.
Whilst incorporating many well proven features of our very popular A7 traction engine, this model is fitted with compound cylinders, belly tanks, three speeds, larger wheels fitted with solid rubber tyres, and has a large capacity fire box.
The prototype engine was a fully sprung engine, but as this was fairly complicated, we have produced drawings showing springing on the front end only.
Showman's Version - click for more images
The road locomotive can also be built as a Showman's Engine as many of the full size engines where converted during their working lives. We have produced drawings and castings for this also.Specification
| Overall Length | 35 1/4" |
| Overall Height | 23 15/16"" |
| Overall Width | 14 1/8" |
| Diameter of Flywheel | 9" |
| Diameter of Front Wheels | 9 3/8" over rubber tyres |
| Diameter of Rear Wheels | 13 3/8" over rubber tyres |
| Boiler Diameter | 4 3/4" |
| Cylinder, Bore and Stroke | 1 1/4" x 1 7/8" x 2" |
| Working Pressure | 120 p.s.i |
| Approx Weight | 160 lbs |
Drawings
| Part No | Description | No Sheets | Price £ Ex Vat |
| 2999 | General Arrangement 2" Fowler Showman's Engine | 1 | 12.00 |
| 3000 | General Arrangement 2" Fowler Road Loco | 1 | 12.00 |
| 3001-3019 | Individual drawings as below | 1 | 10.00 |
| 3020 | Complete Set of 2" Fowler Road Loco Drawings. (excludes GA) | 17 | 170.00 |
| 3021 | Complete set of 2" Fowler Showman's Drawings. (excludes GA) | 19 | 190.00 |
Click on a drawing number to see details of parts and castings available
| 3001 | Boiler and Fittings |
| 3002 | Front Axle and Smokebox Assembly |
| 3003 | Front and Rear Wheels and Spud Pan Assembly |
| 3004 | Horn Plate Assembly |
| 3005 | Gear Change, Crankshaft, 3rd Shaft/Rear Axle Housings |
| 3006 | Shafts and Gearing |
| 3007 | Tender and Fittings |
| 3008 | Belly Tank, Steering Gear and Fittings |
| 3009 | Brake Gear, Reversing Lever and Winding Drum |
| 3010 | Cylinder Block |
| 3011 | Cylinder Fittings |
| 3012 | Safety Valves, Lagging Sheets, Ash Pan |
| 3013 | Motion Details |
| 3014 | Gear Guards, Motion Covers, etc |
| 3015 | Canopy and Balance Pipe |
| 3016 | Plumbing Details, Water Pump |
| 3017 | Painting and Lining Details |
| 3018 | Showman's Fittings |
| 3019 | Showman's Canopy |
| fittings | Special Fittings |
