3" Scale Fowler A7 Traction Engine |
Sheet 0901 - Boiler and Fittings
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
| xxx | 0950 | Copper | Boiler Materials, Barrel is flat sheet requiring rolling Fire Tubes, Stay material, Rivets etc |
POA | |
| xxx | 0948 | Manhole Clamps | Gun Metal | 1 Pair | 32.00 |
 |

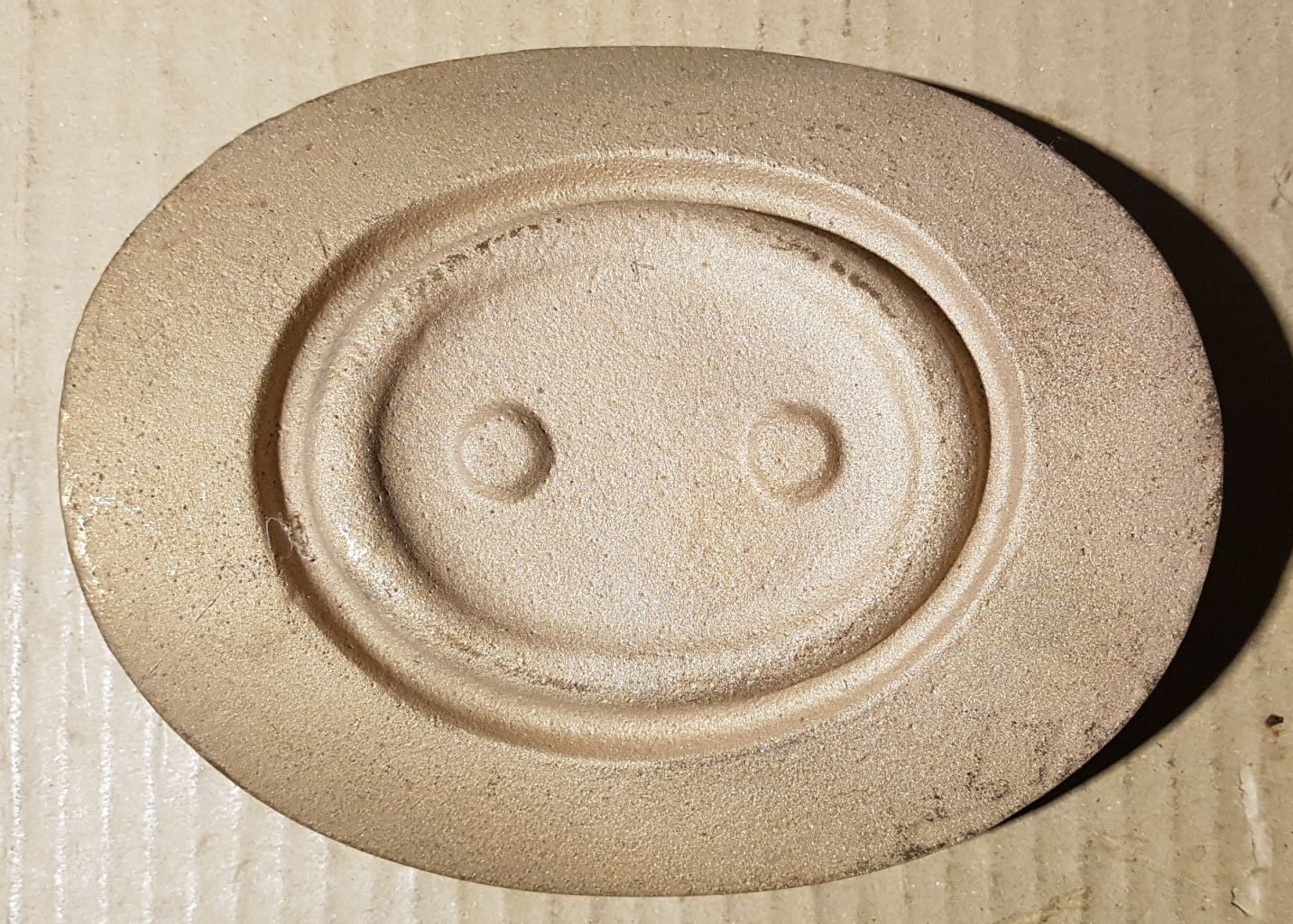

0949 | Dummy Manhole and Flange | Gun Metal | 1 off | 54.00 |
 |
0952 | Blowdown Cock Casting Picture shows complered Blowdown |
Gun Metal | 1 off | 20.00 |
 |

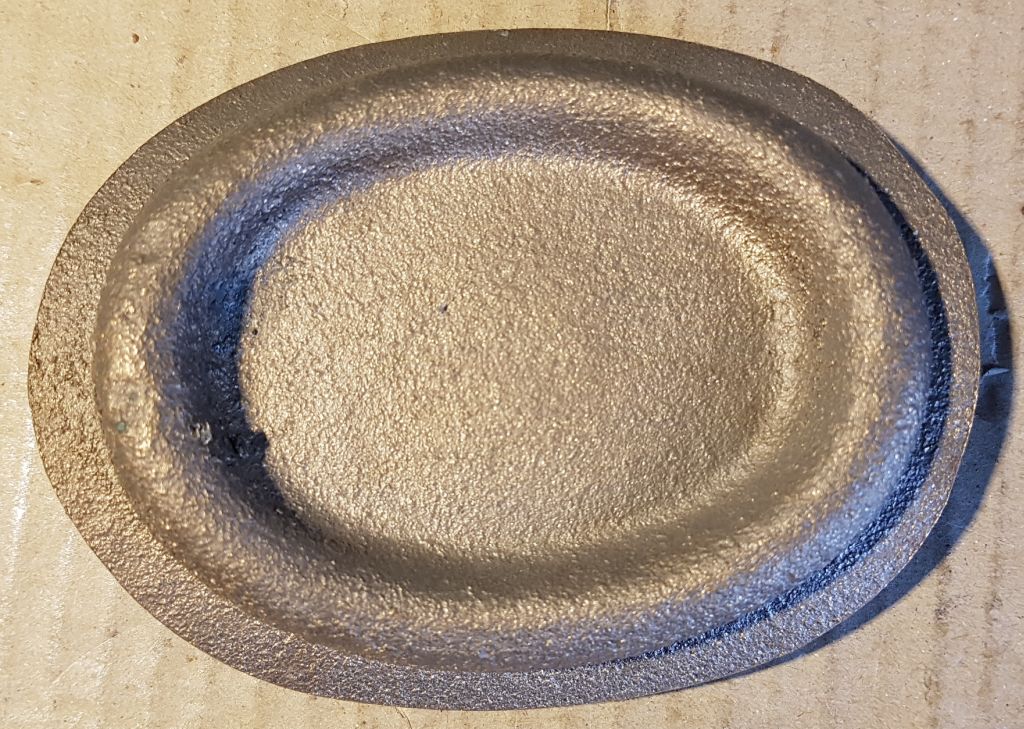

0953 | Manhole | Gun Metal | 1 off | 35.00 |
| xxx | 0954 | Firehole Door | Gun Metal | 1 off | 28.00 |
Sheet 0902 - Front Axle and Smokebox Assembly
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
| xxx | 0955 | Bottom Bush | Gun Metal | 1 off | 30.00 |
 |
0955A | Perch Bracket | Steel | 1 off | 39.35 |
| xxx | 0956 | Chimney | Steel Rolled and Welded | 1 off | 65.00 |
| xxx | 0957 | Chimney Cowl | Brass | 1 off | 34.00 |
 |
0958 | Chimney Base Ring | Giun Metal | 1 off | 30.00 |
| xxx | 0959 | Chimney Base | Cast Iron | 1 off | 45.00 |
| xxx | 0960 | Smokebox, Rolled and Welded | Steel | 1 off | 65.00 |
| xxx | 0961 | Spacer Ring | Gun Metal | 1 off | 34.00 |
 |
0962 | Door Ring | Gun Metal | 1 off | 64.00 |
| xxx | 0963 | Smokebox Door | Steel | 1 off | 22.00 |
 |
0964 | Door Nameplates | Brass | 1 pair | 21.02 |
 |
0965 | Front Axle Fork | Cast Iron | 1 off | 42.00 |
| xxx | 0966 | Front Axle | SG Iron | 1 off | 88.00 |
Sheet 0903 - Front and Rear Wheels, Spud Pan Assembly
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
| xxx | 0967 | Spud Pan | Steel Spinning | 1 off | 44.90 |
| xxx | 0967a | Top Ring for Spud Pan | Steel | 1 off | 34.30 |
| xxx | 0968 | Rear Wheel Hubs | Cast Iron | 2 off | 150.00 |
| xxx | 0968A | Rear Wheel Hub Cover Set | Cast Iron | 4 off | 85.00 |
| xxx | 0969 | Rear Spokes, Laser Profiled | Steel | 32 off | 65.00 |
| xxx | 0970 | Tie Plates Material | Steel | 36 off | 8.86 |
| xxx | 0971 | Rear Strakes Material | Steel | 72 off | 35.02 |
| xxx | 0972 | Rear Wheel Rims, Rolled and welded in Tee Rings | Steel | 2 off | 370.00 |
| xxx | 0973 | Rear Hub Caps | Steel | 2 off | 8.14 |
| xxx | 0974 | Front Wheel Rims, Rolled and welded in Tee Rings | Steel | 2 off | 250.00 |
 |
0975 | Front Hubs (6 pieces) | Cast Iron | 1 set | 72.00 |
| xxx | 0976 | Front Hub Caps | Steel | 2 off | 7.42 |
| xxx | 0977 | Front Spokes, Laser Profiled | Steel | 24 off | 43.06 |
| xxx | 0978 | Front Tyres | Steel | 8 off | 10.92 |
| xxx | 1097 | Front Hub Bush material | Gun Metal | 1 pair | 40.00 |
| xxx | 1098 | Rear Hub Bush material | Gun Metal | 1 pair | 45.00 |
| xxx | 1090 | Rubber Tyres (7.8m of RT070) | Rubber | 1 Set | 390.00 |
Sheet 0904 - Horn Plate Assembly
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
 |
0980 | Horn Plates Laser Profiled | Mild Steel | 2 off | 48.00 |
| xxx | 0981 | Spectacle Plates | Mild Steel | 2 off | 10.00 |
 |
0982 | Crank Bearing Housing Nearside | Cast Iron | 1 off | 42.00 |
 |
0983 | Crank Bearing Housing Offside | Cast iron | 1 off | 42.00 |
 |
0984 | Crankshaft Bearings | Gun Metal | 1 off | 22.05 |
 |
0985 | Third Shaft and Rear Axle Bearing Housings | Cast Iron | 2 off | 160.00 |
 |
0986 | Second Shaft Bearings | Gun Metal | 1 off | 20.60 |
| xxx | 0987 | Third Shaft Bearings | Gun Metal | 1 off | 14.94 |
 |
0988 | Hind Axle Bearings | Gun Metal | 1 off | 28.93 |
 |
0989 | Working Pressure Plate | Brass | 1 off | 10.00 |
Sheet 0905 - Shafts and Gearing
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
 |
0990 | Flywheel | Cast Iron | 1 off | 175.00 |
| xxx | 0991 | Final Drive Gear | Cast Iron | 1 off | 160.00 |
| xxx | 0992 | Slow Pinion Blank | Mild Steel | 1 off | 8.76 |
| xxx | 0993 | Fast Pinion Blank | Mild Steel | 1 off | 5.15 |
| xxx | 0994 | Second Shaft Gear Cluster | Cast Iron | 1 off | 85.00 |
| xxx | 0995 | Fast Wheel Blank | Cast Iron | 1 off | 24.83 |
| xxx | 0996 | Second Shaft Drive Pinion Blank | Mild Steel | 1 off | 5.67 |
| xxx | 0997 | Third Shaft Wheel | Cast Iron | 1 off | 105.00 |
| xxx | 0998 | Final Drive Pinion Blank | Cast Iron | 1 off | 25.96 |
 |
0999 | Crankshaft Blank | SG Iron | 1 off | 95.00 |
| xxx | 1000 | Complete Bevel Gear Set Machined | 1 set | 410.00 | |
| xxx | 1001 | Complete Spur Gear Set Machined | 1 set | 1510.00 | |
| xxx | 1002 | Rear Axle | Steel | 1 off | 12.16 |
| xxx | 1003 | Bevel Gear Set Castings, cast in teeth Comprising 2 Crown Wheels and 2 Pinions |
Cast Iron | 1 set | 175.80 |
| xxx | 1004 | Thrust Spacer | Gun Metal | 1 off | 9.48 |
Sheet 0906 - Tender and Fittings
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
| xxx | 1007 | Draw Straps and Tow Bar, laser cut | Steel | 1 set | 40.70 |
| xxx | 1008 | Chequer Plate for Steps | Brass | 1 off | 28.30 |
| xxx | 1009 | Brass Sheet for Tender | Cut to size | 1 set | 167.28 |
Sheet 0907 - Cylinder Block
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
 |
1010 | Cylinder Block | Cast Iron | 1 off | 215.00 |
| xxx | 1011 | Cylinder Liner | Cast Iron | 1 off | 16.00 |
| xxx | 1012 | Rear Cylinder Cover | Cast Iron | 1 off | 36.00 |
| xxx | 1013 | Front Cylinder Cover | Cast Iron | 1 off | 5.67 |
| xxx | 1014 | Valve Chest Cover | Mild Steel | 1 off | 3.20 |
| xxx | 1015 | Valve Chest Nameplate | Brass | 1 off | 24.11 |
| xxx | 1016 | Piston Rings (2" o/d) | Cast Iron | 2 off | 28.00 |
| xxx | 1017 | Decorative Front Cover | Steel Spinning | 1 off | 20.00 |
Sheet 0908 - Cylinder Fittings
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
| xxx | 1020 | Governor Bevel Gears | Brass | 1 pair | 85.00 |
| xxx | 1021 | Governor Bracket | Gun Metal | 1 off | 54.00 |
| xxx | 1022 | Safety Valve Base | Gun Metal | 1 off | 45.00 |
| xxx | 1023 | Safety Valve Spring | Stainless Steel | 1 off | 3.30 |
| xxx | 1024 | Piston Blank | Cast Iron | 1 off | 3.71 |
| xxx | 1025 | Slide Valve | Gun Metal | 1 off | 11.13 |
Sheet 0909 - Motion Details
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
 |
1030 | Weighshaft Bracket | Gun Metal | 1 off | 90.00 |
| xxx | 1031 | Eccentric Straps | Gun Metal | 2 off | 42.00 |
| xxx | 1032 | Big End Bearing | Gun Metal | 1 off | 23.29 |
Sheet 0910 - Brake Gear, Reversing Lever, Winding Drum
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
 |
1040 | Brake Drum | Cast Iron | 1 off | 72.40 |
| xxx | 1041 | Brake Handwheel | Cast Iron | 1 off | N/A |
 |
1042 | Winding Drum | Cast Iron | 1 off | 148.00 |
| xxx | 1043 | Driving Plate Outer | Steel | 1 off | 20.00 |
| xxx | 1044 | Driving Plate | Steel | 1 off | 30.00 |
| xxx | 1045 | Wire Rope | Galvanized Steel | 1 off | 38.00 |
Sheet 0911 - Gear Guards and Fittings
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
| xxx | 1050 | Water Lifter Hose | Rubber | 6 feet | 15.66 |
| xxx | 1053 | Gear Guard Spinning | Steel | 1 pair | 42.00 |
Sheet 0912 - Steering Gear, Lagging Sheets
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
| xxx | 1061 | Lower Steering Bracket | Gun Metal | 1 off | 57.20 |
 |
1062 | Steering Wheel Casting (lost wax) Picture shows completed Steering Wheel |
Stainless | 1 off | 37.00 |
| xxx | 1063 | Steering Worm and Wheel | Gun Metal/Steel | 1 set | 88.00 |
| xxx | 1064 | Cladding Sheets | Brass | 1 set | 50.00 |
| xxx | 1065 | Lagging Material 18" x 24" | Superwool | 1 off | 9.00 |
| xxx | 1070 | Brass Boiler Banding | Brass | 3 off | 9.00 |
| xxx | 1099 | Works Plate | Brass | 1 off | 22.00 |
Sheet 0913 - Water Pump and Plumbing
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
| xxx | 1067 | Pump Eccentric Strap | Gun Metal | 1 off | 22.97 |
 |
1067A | Pump Castings | Gun Metal | 1 set | 82.30 |
| xxx | 1068 | Steam Manifold | Gun Metal | 1 off | 38.00 |
Sheet 0914 - Firegrate, Lining and Painting Details
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
 |
1066 | Firegrate | Cast Iron | 1 off | 65.00 |
Fittings and Construction Manual
| Image | Code | Description | Material | Qty | Price £ Ex VAT |
| xxx | 0603A | Pressure Gauge 1" dia 0-150 psi | Brass | 1 off | 28.33 |
| xxx | 0542 | Globe Valve for Injector, 3/16" pipe | Gun Metal | 1 off | 26.50 |
| xxx | 0542 | Globe Valve for Blower, 3/16" pipe | Gun Metal | 1 off | 26.50 |
| xxx | 0542 | Globe Valve for Water Lifter, 3/16" pipe | Gun Metal | 1 off | 26.50 |
| xxx | 0536 | 1 1/4" Square Lubricator | Steel | 1 off | 41.64 |
 |
1691 | Fowler Construction Manual - This manual is spiral bound to open flat for easy reference and contains step by step instructions for building the Fowler A7 Traction Engine. Sketches of any necessary jigs and fixtures are included together with a list of castings and a reduced General Arrangement drawing. The manual represents excellent value and is a useful accessory to a set of drawings |
19.00 | ||
